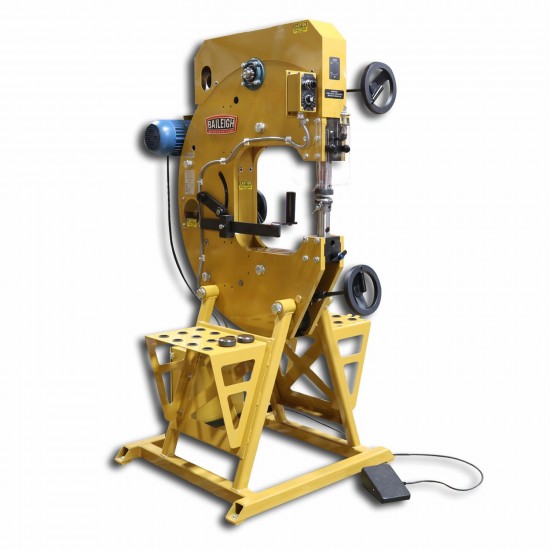

BAILEIGH 1005578 MH-19 16 GAUGE VARIABLE SPEED POWER HAMMER

BAILEIGH 1005578 MH-19 16 GAUGE VARIABLE SPEED POWER HAMMER
BAILEIGH 1005578 MH-19 16 GAUGE VARIABLE SPEED POWER HAMMER
$28,589.00
  • Stock: In Stock
  • Model: MH-19
  • Weight: 1,300.00lb
  • Dimensions:
  • 65.00in x 50.00in x 96.00in
  • SKU: 1005578
  • Made in the U.S.A.
  • Build from 1" | 25.4 mm thick solid steel plate frame prevents flex, ensures high quality hits, and helps this power hammer last for many years
  • Arrives fully assembled, just unpack it, plug it in, and get started
  • 19" | 483 mm Throat with deep cutout designed for fenders
  • Large 16 gauge | .0598" | 1.518 mm mild steel and 12 gauge | .08081" | 2.503 mm aluminum capacity
  • 2 HP | 1.49 kW Motor runs on 220V/1 Phase/60 Hz. power
  • Variable speed from 0 to 1,500 blows per minute
  • Can increase the BPM to hit lightly for planishing and smoothing out dents
  • Switch between rigid and non-rigid modes to suit your project
    • Pullmax® style Mode for short stroke shaping and flanging
    • Spring slapping Yoder® style mode for aggressive shrinking and planishing
  • Stroke adjustments range from .177" to .55" | 4.5 mm to 14 mm
  • Change the speed by foot pedal or through the operator panel
  • Includes starter shrinking and forming dies
  • Die sets are available for shrinking | stretching | flanging | louvers, can also create custom dies for the machine
  • Tooling design allows to switch dies quickly for smooth production
  • Standard with a tooling rack on the side of the machine
Forming Capacity:
Mild Steel (Gauge | In. | mm)
Aluminum (Gauge | In. | mm)

16 | .0598 | 1.518
12 | .08081 | 2.053
Throat Depth (In. | mm) 19 | 483
Tooling Height Adjustment (In. | mm) 2 | 50.8
Working Height (In. | mm) 53 | 1,346
Length of Stroke Adjustment (In. | mm) .177 - .55 | 4.5 - 14
Variable Speed (Blows Per Minute) 0 - 1,500
Motor (HP | kW) 2 | 1.49
Electric Power Requirement 220V/1 Phase/60 Hz.
Shipping Dimensions (L x W x H/In. | mm) 65 x 50 x 96 | 1,651 x 1,270 x 2,438
Shipping Weight (Lbs. | Kgs.) 1,300 | 590
Design and specifications are subject to change without notice.
  • Tooling Rack
  • Foot Pedal Control
  • 1005967 1/4" Bead Width x 2" Face Diameter S7 Tool Steel Beading Set
  • 1005968 3/8" Bead Width x 2" Face Diameter S7 Tool Steel Beading Set
  • 1005969 1/2" Bead Width x 2" Face Diameter S7 Tool Steel Beading Set
  • 1005978 2" Face Diameter S7 Tool Steel Master Top Die
  • 1010414 2.5" Face Diameter S7 Tool Steel Mater Top Die
  • 1005979 3" Face Diameter S7 Tool Steel Master Top Die
  • 1005944 3" Face Diameter 80 Durometer Rubber - Top S7 Tool Steel - Bottom Rubber Master Top Die
  • 1014260 1" Radius x 2" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005980 1.5" Radius x 2" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005981 2" Radius x 2" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005982 3" Radius x 2" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1009289 6" Radius x 2.5" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1009288 8" Radius x 2.5" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1009290 3" Radius x 2.5" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1012452 12" Radius x 2.5" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1012453 24" Radius x 2.5" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1012454 36" Radius x 2.5" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005983 6" Radius x 3" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005984 8" Radius x 3" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005985 12" Radius x 3" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005986 24" Radius x 3" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005987 36" Radius x 3" Face Diameter S7 Tool Steel Doming Bottom Die
  • 1005988 6" Radius with 1" Flat Single Die x 3" Face Diameter S7 Tool Steel Stretch Flat Bottom Die
  • 1005992 1" Radius x 2" Face Diameter S7 Tool Steel Linear Stretch Die
  • 1014259 2" Face Diameter S7 Tool Steel Mini Thumbnail Shrink Die Set
  • 1008528 2.5" Face Diameter S7 Tool Steel Thumbnail Shrink Die Set
  • 1005995 3" Face Diameter S7 Tool Steel Thumbnail Shrink Die Set
  • 1005996 1/2" Square S7 Tool Steel Universal Tool Holders
  • 1005997 3/4" Square S7 Tool Steel Universal Tool Holders
  • 1005998 7/8" Square S7 Tool Steel Universal Tool Holders
  • 1014268 S7 Tool Steel Air Hammer to Power Hammer Tooling Adapter
  • 1005596 Air Hammer Attachment
  • 1005599 10" Top Roll Diameter x 0" | 2" | 8" | 24" Lower Die Radius English Wheel Attachment
