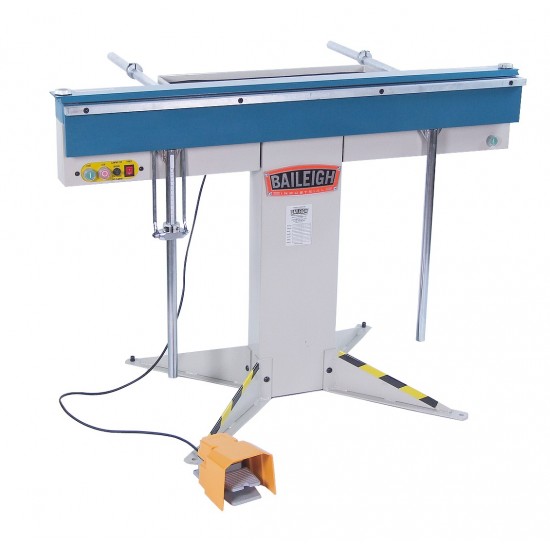

BAILEIGH 1000490 BB-4816M 48" X 16 GAUGE MANUAL MAGNETIC SHEET METAL BOX AND PAN BRAKE

BAILEIGH 1000490 BB-4816M 48" X 16 GAUGE MANUAL MAGNETIC SHEET METAL BOX AND PAN BRAKE
BAILEIGH 1000490 BB-4816M 48" X 16 GAUGE MANUAL MAGNETIC SHEET METAL BOX AND PAN BRAKE
$3,599.00
  • Stock: In Stock
  • Model: BB-4816M
  • Weight: 462.00lb
  • Dimensions:
  • 57.00in x 44.00in x 34.00in
  • SKU: 1000490
  • This magnetic sheet metal brake can bend boxes or pans to almost any depth, doesn't rely on conventional finger depths
  • The breakthrough open ended design allows to create enclosed ducts and shapes impossible to make with a traditional box and pan brake
  • Recommended for HVAC shops, industrial art shops, and general sheet metal fabrication shops to making enclosed boxes, triangles, alternate bends on varying planes, and round items such as scrolling applications
  • Bending a variety of materials, including sheets of mild steel, stainless steel, aluminum, coated materials, heated plastics, and more
  • Runs on 220V/1 Phase/60 Hz. power works at virtually any site
  • 48" | 1,219 mm Long maximum bending capacity
  • 16 Gauge | 1.518 mm mild steel and 20 gauge | .9525 mm stainless steel maximum thickness capacity with bending leaf extension removed
  • 18 Gauge | 1.214 mm mild steel and 21 gauge | .8737 mm stainless steel maximum thickness capacity with bending leaf extension installed
  • Maximum bend angle of 180°
  • 6 Ton magnetic power is consistent across the entire beam, allowing for crisp bends even in the middle of the brake
  • A scaled stroke angle control can be set for repeatable bends time after time
  • The mild steel clamping bar with straight bars for straight bends or segmented clamping bars for box and pan applications
  • Blade gap adjustment on the clamping bars lets the operator work with sheet metal of different thicknesses
  • The operator can remove the bottom leaf's bending extension for the tightest bend dimension between bends of .625"
  • Foot pedal or push button controls engage the magnet and leave the operator hands free to guide the material
  • Comes with the adjustable back gauges for production runs
  • IMPORTANT INFORMATION!
    To achieve proper performance and prevent damage to the machine, the power supplied must be 220VAC ±5%, 209VAC to 231VAC. Failure to comply will damage the machine and void the warranty
Bending Length (In. | mm) 48 | 1,219
Bending Capacity with Bending Leaf Extension Removed:
Mild Steel (Gauge | mm)
Stainless Steel (Gauge | mm)

16 | 1.518
20 | .9525
Bending Capacity with Bending Leaf Extension Installed:
Mild Steel (Gauge | mm)
Stainless Steel (Gauge | mm)

18 | 1.214
21 | .8737
Bend Angle 0 - 180°
Clamping Force (Ton | Kgs.) 6 | 5,443
Clamping Bar Lift - Magnet (Max./In. | mm) Unlimited
Depth Under Clamping Bar (Min./In. | mm) 2 | 51
Box Depth (In. | mm) Unlimited
Length of Fingers (In.) 1 | 1-1/2 | 2 | 2-3/4 | 5-1/2 | 11
Power Requirements 220V/1 Phase/60 Hz.
Shipping Dimensions (L x W x H/In. | mm) 57 x 44 x 34 | 1,448 x 1,118 x 864
Shipping Weight (Lbs. | Kgs.) 462 | 210
Design and specifications are subject to change without notice.
  • Foot Pedal Switch
