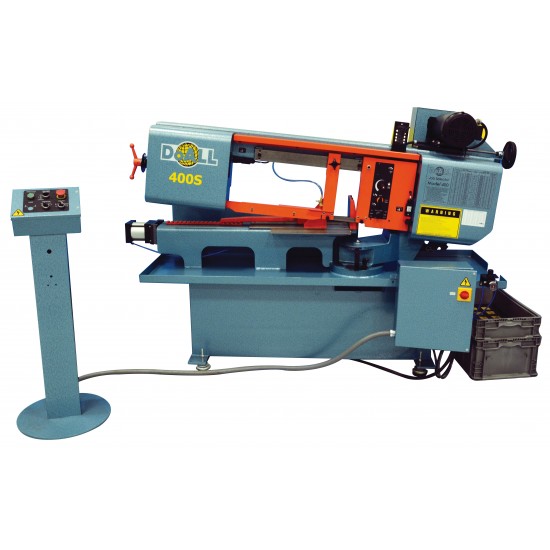

DOALL 1008780 400-S 10" X 16" STRUCTURALL SERIES HORIZONTAL MITER CUTTING BAND SAW

DOALL 1008780 400-S 10" X 16" STRUCTURALL SERIES HORIZONTAL MITER CUTTING BAND SAW
DOALL 1008780 400-S 10" X 16" STRUCTURALL SERIES HORIZONTAL MITER CUTTING BAND SAW
$11,740.00
  • Stock: In Stock
  • Model: 400-S
  • Weight: 1,200.00lb
  • Dimensions:
  • 42.00in x 87.00in x 56.00in
  • SKU: 1008780
  • Made in the U.S.A.
  • This general purpose bandsaw is part of the StructurALL® family of horizontal metal cutting scissor saws
  • The ideal machine for the small to medium fabricator or machine shop, looking to make extremely accurate for straight or miter cuts in smaller quantities
  • Saw head swivels manually to 45° for miter cuts
  • Infinitely variable speed drive system, spring balanced head
  • Saw guides, spring-loaded, solid carbide inserts
  • Rapid saw head approach control
  • Fine adjustment head feed control
  • Band door interlocks enhance operator safety
  • Gear driven band brush ensures chip removal, extending blade life
  • Saw bed steel wear plates are replaceable for longer saw life
  • Saw blade guards
  • Discharge tray
  • Shovel rake
  • Recirculating coolant system
  • Complimentary cutting fluids package
  • Instruction plate with sawing recommendations
  • Operation and parts manuals
Cutting Capacity at 90°:
Round (Diameter/In. | mm)
Rectangle (H x W/In. | mm)

10-3/4 | 273
10 x 16 | 254 x 406
Cutting Capacity at 45°:
Round (Diameter/In. | mm)
Rectangle (H x W/In. | mm)

10-3/4 | 273
10 x 10-3/4 | 254 x 273
Head Swivel 45°
Blade Drive Infinitely Variable Speed
Blade Speed (FPM | MPM) 105 - 275 | 32 - 84
Blade Wheel Diameter (In. | mm) 14-1/2 | 370
Blade Size (W x THK x L/In. | mm) 1 x .035 x 158 | 25 x .90 x 4,013
Material Pass Line Height (In. | mm) 29 | 736.6
Vise Manual
Table Load Capacity (Maximum/Lbs. | Kg) 1,800 | 816
Main Motor (HP | kW) 2 | 1.5
208V/230V/460V/575V/3 Phase/60 Hz.,
Prewired 230V
Coolant System Capacity (Gallons | Liters) 6 | 22
Overall Dimensions (W x L x H/In. | mm) 87.12 x 36.96 x 54.80 | 2,212.8 x 956.6 x 1,391.9
Floor Space Dimensions Required (W x L x H/In. | mm) 92.67 x 68.97 x 75.75 | 2,353.8 x 1,751.9 x 1,924.1
Net Weight (Lbs. | Kg) 1,050 | 472
Shipping Weight (Lbs. | Kg) 1,200 | 544
Design and specifications are subject to change without notice.
  • One 1"W x .035" THK x 158"L x 5/8 TPI Vari-Tooth Bi-Metal Saw Blade
  • Recirculating Coolant System
  • Complimentary Cutting Fluids Package
  • 400V/3 Phase/50 Hz. Electric Wiring
  • Pneumatic Head Raise with Adjustable Height Stop - Requires Plant Air
  • Pneumatic Vise - Requires Plant Air
  • Full Cycle Attachment
  • Work Light
  • 24" | 609.4 mm Discharge Table
  • 0 - 18" | 0 - 455 mm Adjustable Work Stop - Requires 24" | 609.4 mm Discharge Table
  • Laser Line Generator
  • Interface Bracket Assembly
  • 5' | 1,500 mm L x 18" | 460 mm W x 750 Lbs. | 1,100 Kg/Meter Weight Capacity Medium Duty Roller Conveyor with Adjustable Legs
  • 10' | 3,000 mm L x 18" | 460 mm W x 750 Lbs. | 1,100 Kg/Meter Weight Capacity Medium Duty Roller Conveyor with Adjustable Legs
  • Additional 2-1/2" | 65 mm Diameter Conveyor Rollers
  • One Fixed and One Adjustable Vertical Guide Rollers, 6" | 150 mm High Roller Face x 16" | 405 mm Width Capacity, Will Bolt on Front or Rear Conveyor
  • Flushing Hose Attachment
  • Band Mist Lubricator - Requires 80 to 90 PSI | 5.6 to 6.3 kg/cm² Plant Air
  • Magnetic Wand Chip Remover
  • Manual Nesting Fixture
  • Low | High Band Speed Option
