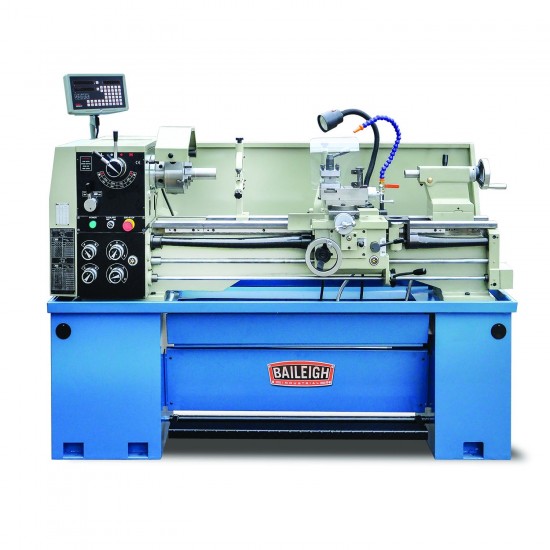

BAILEIGH 1016623 PL-1440E-1.0 14" X 40" GEARED HEAD METAL LATHE WITH 2-AXIS DRO

BAILEIGH 1016623 PL-1440E-1.0 14" X 40" GEARED HEAD METAL LATHE WITH 2-AXIS DRO
BAILEIGH 1016623 PL-1440E-1.0 14" X 40" GEARED HEAD METAL LATHE WITH 2-AXIS DRO
$10,223.00
  • Stock: In Stock
  • Model: PL-1440E-1.0
  • Weight: 1,521.00lb
  • Dimensions:
  • 79.00in x 33.00in x 59.00in
  • SKU: 1016623
  • This geared head metal lathe with added a DRO is reliable and precise, recommended for small to medium shops and schools
  • 2 HP | 1.49 kW Motor runs on 220V/1 Phase/60 Hz. electric power, can use it almost anywhere
  • 8 Spindle speeds, ranging from 70 to 2,000 RPM
  • Rigid castings ensure smooth chatter free cuts and prolong tooling life
  • Precision ground and hardened ways ensure years of tight tolerances
  • Digital readout - DRO helps to make precise cuts
  • Capable of making metric and standard threads
  • Gap lathe design allows to remove a section of the slide to fit a slightly larger diameter
  • Quick change tool post saves the trouble of screwing and unscrewing tool sets
  • 3-Jaw and 4-Jaw chucks can hold square and rounded materials
  • Face plate lets to bolt large but not long pieces in place
  • Steady rest and follow rest brace the shaft and help prevent wobbling
  • Foot brake makes it easy to stop the machine in an emergency
  • Integrated coolant system which maintains accuracy and helps the machine last longer
  • Halogen work light comes standard
  • Optional taper attachment for making cones is sold separately
  • No assembly required, just open the crate and wire it up
Swing Over Bed (In. | mm) 14.173 | 360
Swing Over Cross Slide (In. | mm) 9.055 | 230
Swing in Gap (In. | mm) 20 | 508
Distance Between Centers (In. | mm) 39.37 | 1,000
Width of Bed (In. | mm) 7.322 | 186
Hole Through Spindle Bore (In. | mm) 1.496 | 38
Spindle Nose D1-4
Spindle Bore Taper MT-5
Number of Spindle Speeds 8
Range of Spindle Speeds (RPM) 70 - 2,000
Travel of Top Slide (In. | mm) 2.677 | 68
Travel of Cross Slide (In. | mm) 6.299 | 160
Leadscrew Thread Pitch (TPI) 8
Longitudinal Feed Range (IPR | MMPR) .00102 - .0137 | .026 - .348
Cross Feed Range (IPR | MMPR) .00027 - .0037 | .007 - .094
Range of Inch Threads (TPI) 4 - 56
Range of Metric Threads (mm) .45 - 10
Tailstock Quill Diameter (In. | mm) 1.259 | 32
Tailstock Quill Travel (In. | mm) 4.488 | 114
Taper of Tailstock Quill MT-3
Maximum Tool Selection (In. | mm) .625 x .625 | 15.875 x 15.875
Main Motor (HP | kW) 2 | 1.49
Electric Power Requirement 220V/1 Phase/60 Hz.
Coolant Pump Motor (HP | W) 1/8 | 93.21
Shipping Dimensions (L x W x H/In. | mm) 79 x 33 x 59 | 2,007 x 838 x 1,500
Shipping Weight (Lbs. | Kgs.) 1,521 | 690
Design and specifications are subject to change without notice.
  • 2-Axis Digital Readout System
  • 6" 3-Jaw Scroll Chuck with Camlock Studs
  • 8" 4-Jaw Independent Chuck with Camlock Studs
  • 10" Face Plate with Camlock Studs
  • Steady Rest with Brass Tips
  • Follow Rest with Brass Tips
  • Quick Change Tool Post and Four Tool Holders
  • Change Gears
  • Chuck Guard with Safety Switch
  • Halogen Work Light
  • Foot Brake
  • Complete Coolant System
  • Full Length Splash Guard
  • Taper Attachment
  • 1020640 PC-ADX10 10 HP Rotary Phase Converter
