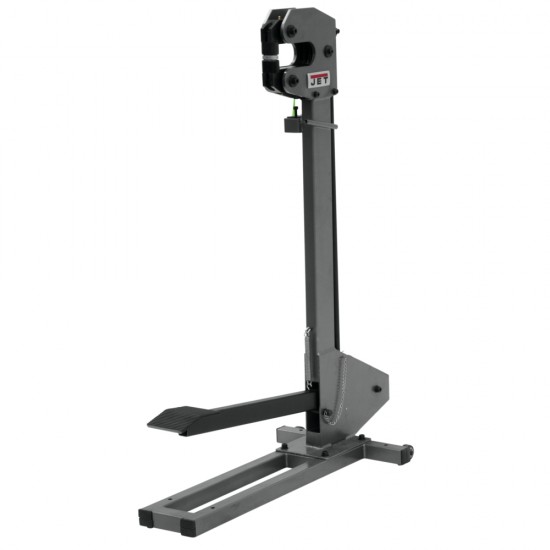

JET 756018 MSS-1 16 GAUGE MANUAL SHEET METAL SHRINKER STRETCHER

JET 756018 MSS-1 16 GAUGE MANUAL SHEET METAL SHRINKER STRETCHER
JET 756018 MSS-1 16 GAUGE MANUAL SHEET METAL SHRINKER STRETCHER
$1,365.71
  • Stock: In Stock
  • Model: MSS-1
  • Weight: 110.00lb
  • Dimensions:
  • 47.00in x 20.00in x 9.00in
  • SKU: 756018
  • Improved frame structure for years of use
  • This shrinker stretcher readily forms compound curves in sheet metal for car, motorcycle, and airplane body restoration
  • 16 Gauge | .0598" | 1.518 mm Mild steel and 18 gauge | .04030" | 1.024 mm aluminum capacity
  • 6" | 152.4 mm Throat depth
  • Forming depth and forming depth are adjustable
  • Standard with a set of hardened steel shrinker and stretcher jaws
  • Handy storage for additional jaws at the operations finger tips
  • Mounted on mobile base provides portability and makes it easy to move around the shop
  • Stand is made of heavy gauge sheet metal for stability
  • Rubber non-skid pad on foot pedal
  • The quick and easy foot pedal operation frees the user’s hands to manipulate the panel for maximum control and accuracy
  • Optional shrinker and stretcher jaws for aluminum materials
Shrinking | Stretching Capacity:
Mild Steel (Gauge | In. | mm)
Aluminum (Gauge | In. | mm)

16 | .0598 | 1.518
18 | .04030 | 1.024
Throat Depth (In. | mm) 6 | 152.4
Throat Height (In. | mm) 2.5 | 63.5
Maximum Flange Capacity (In. | mm) 1-1/8 | 28.6
Stand Included
Movement Foot Operated
Power Requirement Manual
Overall Assembled Dimensions (L x W x H/In. | mm) 36-7/32 x 16-9/64 x 46-17/64 |
920 x 410 x 1,175
Shipping Dimensions (L x W x H/In. | mm) 46-1/2 x 19-5/8 x 8-1/4 |
118 x 50 x 21
Net Weight (Lbs. | Kgs.) 84 | 38
Shipping Weight (Lbs. | Kgs.) 110 | 50
Design and specifications are subject to change without notice.
  • Shrinker Jaw Set with Housing
  • Stretcher Jaw Set with Housing
  • Stand with Foot Pedal
  • 755018 Aluminum Shrinker Jaws
  • 755019 Aluminum Stretcher Jaws
